4 head liquid filling machine

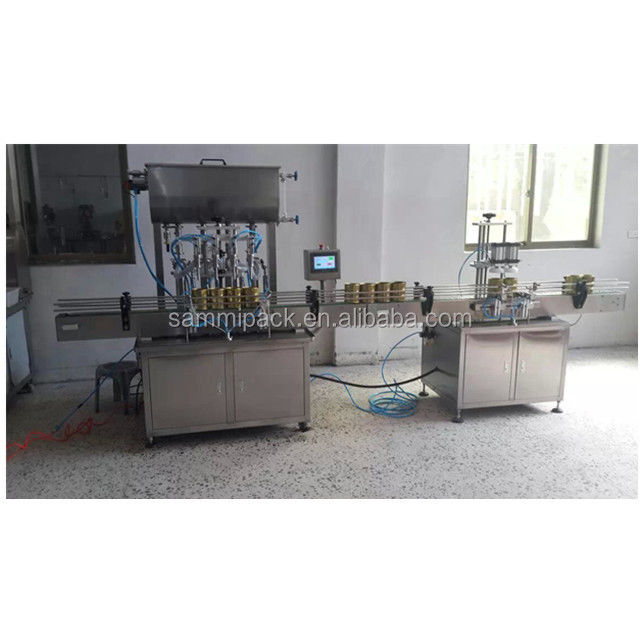

Automatic Liquid Filling Production Line: quick and accurate filling with Taiwan's AirTac component.

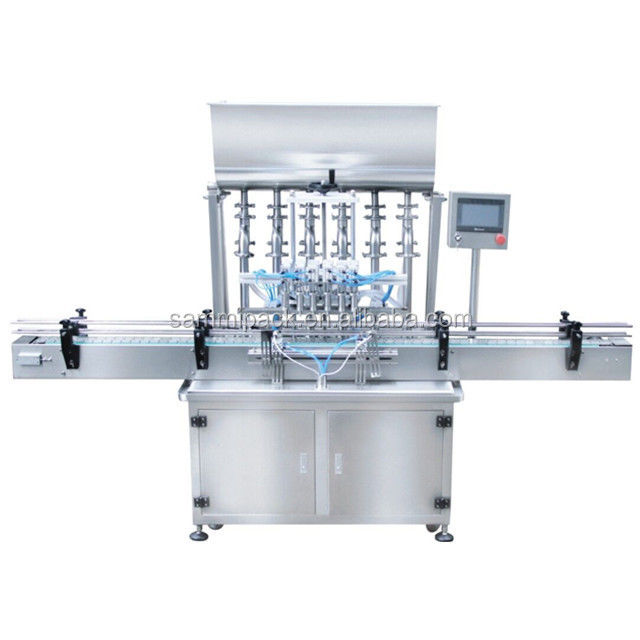

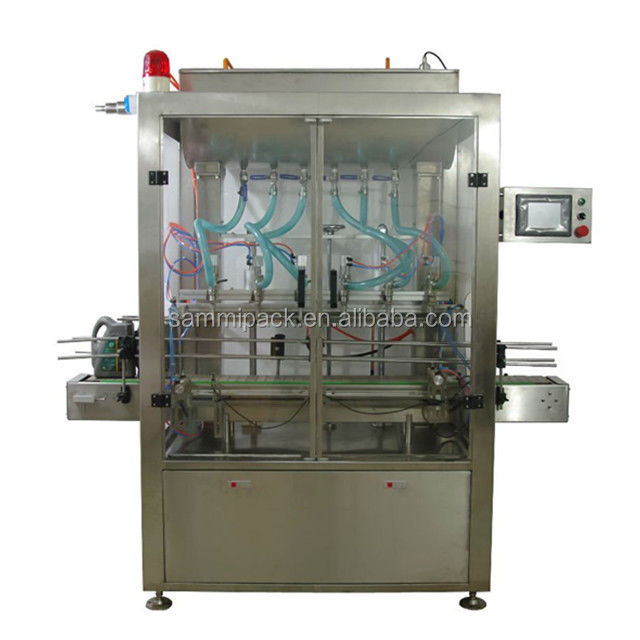

Automatic Liquid Filling Production Line 6 Nozzle:

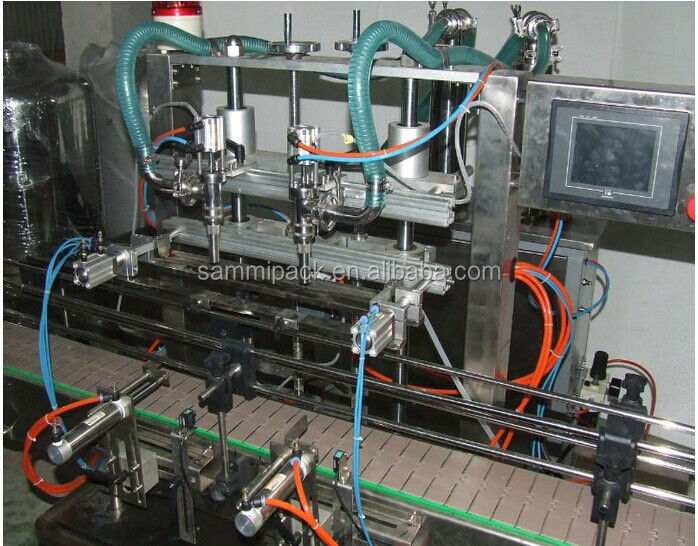

This Model is special for Filling Production Line, and it is simple and reasonable in design, high in accuracy and easy in operation. Suitable for filling liquid in the industries of pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticide and special trades. With no need for power supply, the machine is safe and with the personalized design, can meet the modern enterprises' requirements. This machine is the semi-automatic double piston liquid filling machine, working under the state without electricity, it is safer to operate. This machine has two filling heads in-phase, improving the work efficiency. And the pneumatic part adopts the pneumatic components of Germany FESTO and Taiwan's AirTac. The part contacting materials is made of 316L stainless steel. With adjustment handle of filling volume, the filling speed can be adjusted at will, with high filling accuracy. Filling head adopts anti-leakage, anti-pull and with diving filling device.
Parameter of 6 head filling machine
|
Machine model |
SM-100-2 |
SM-300-2 |
SM-500-2 |
SM-1000-2 |
SM-2500-2 |
SM-5000-2 |
|
|
Filling range |
(10-100ml)×6 |
(30-300ml)×2 |
(50-500ml)×2 |
(100-1000ml)×2 |
(250-2500ml)×2 |
(500-5000ml)×2 |
|
|
Air pressure |
4-6kg/cm2 |
4-6kg/cm2 |
4-6kg/cm2 |
5-8kg/cm2 |
5-8kg/cm2 |
5-8kg/cm2 |
|
|
Filling speed |
30-50bottles/min |
30-50bottles/min |
30-50bottles/min |
30-50bottles/min |
30-50bottles/min |
20-40bottles/min |
|
|
Filling precision |
Liquid ≤±1%, paste≤±2% |
Liquid ≤±1%, paste≤±2% |
Liquid ≤±1%, paste≤±2% |
Liquid ≤±1%, paste≤±2% |
Liquid ≤±1%, paste≤±2% |
Liquid ≤±1%, paste≤±2% |
| Payment Term: | T/T, L/C, Western Union, PayPal, Credit card, trade assurance |
| Package: | export standard wooden case & cartons, honeycomb paperboard case |
| Delivery Time: | 1-3 days after payment |
| transportation: | by sea, by air, by express(DHL, FEDEX,TNT,4PX,ARAMEX,EMS etc) |
|
Shipping Time: |
A, by express:about 5 days to arrive shipping destination,door to door service |
| B, by air: about 7 days to destination airport | |
|
C, by sea:15-30 days to destination port |
