Application:

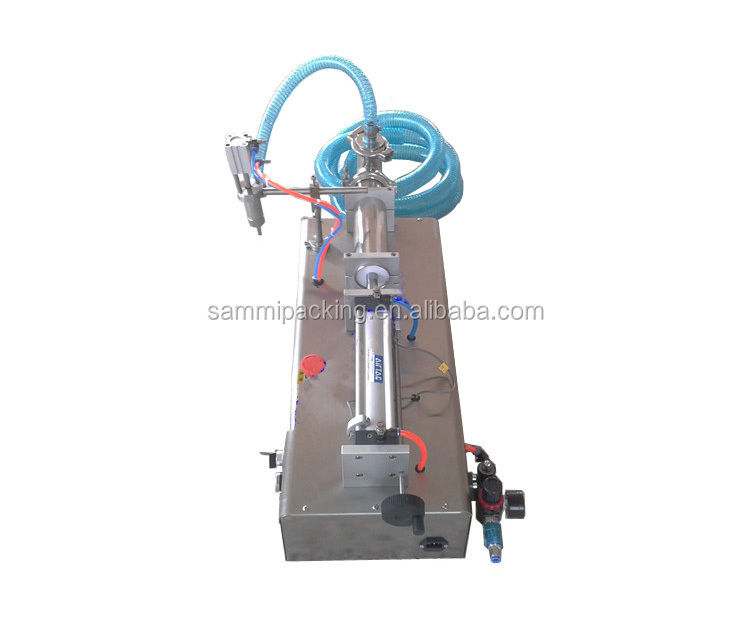

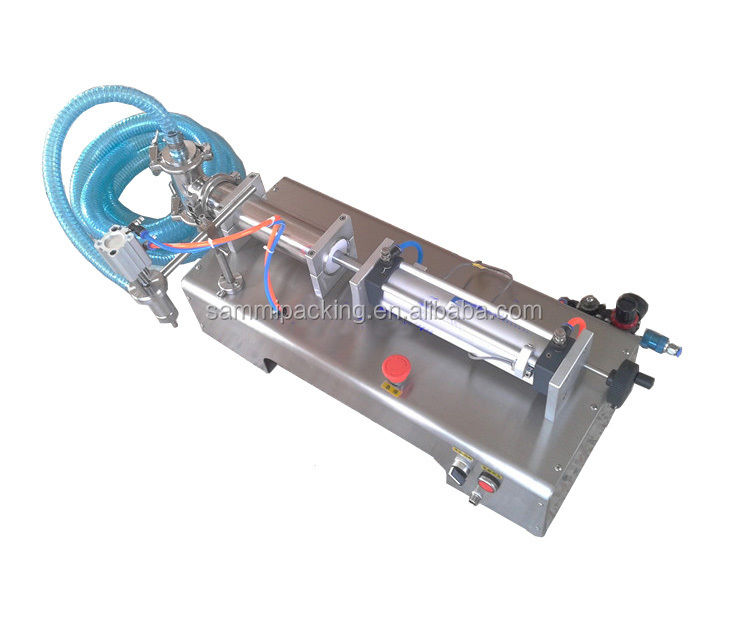

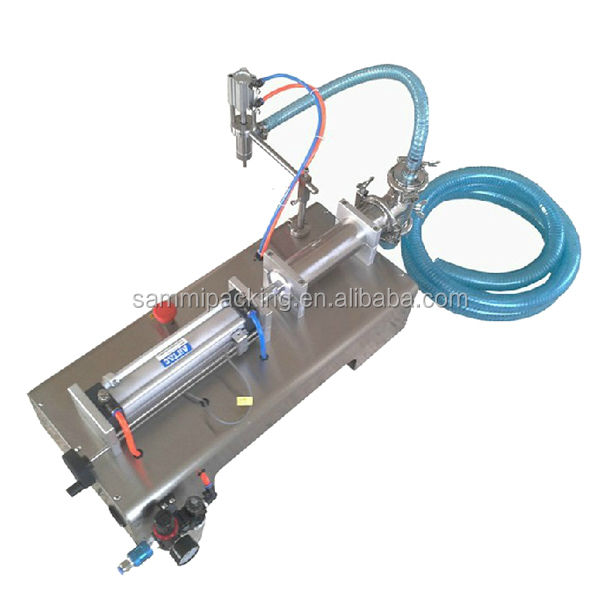

This filling machine is improved on the basis of foreign advanced filling machine technology, with simple structure and reasonable design, high filling accuracy,very easy to operate. Applied in cosmetic,medical, chemistry, foodstuff, beverage,pesticides and special industries. It is an ideal equipment for filling adhensive fluid.
Characteristic:
1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.
2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.
3. Filling volume, filling speed can be adjustable, filling accuracy is high.
4. Adopt the anti-drip, Anti-drawing and lifting filling device.
Technical Parameters:
Machine model | G1WY-100 | G1WY-300 | G1WY-500 | G1WY-1000 | G1WY-2500 | G1WY-5000 |
Filling speed | 5-20b/min(take water for example) | |||||
Filling range | 10-100ml | 30-300ml | 50-500ml | 100-1000ml | 250-2500ml | 500-5000ml |
Air pressure | 0.4~0.6mpa | |||||
Filling error | ≤±1% | |||||
Machine size | 806(L) × 180(W) ×690(H)mm | 880(L) ×230(W) ×665(H)mm | 880(L) × 230(W) ×665(H)mm | 1065 (L) ×230(W) ×665(H)mm | 1250(L) ×400(W) ×300(H)mm | 1390(L) ×420(W) ×380(H)6mm |
Machine weight | 30 Kg | 35Kg | 40Kg | 45Kg | 60 Kg | 80 Kg |
Machine can be customized according to customer,s requirement
